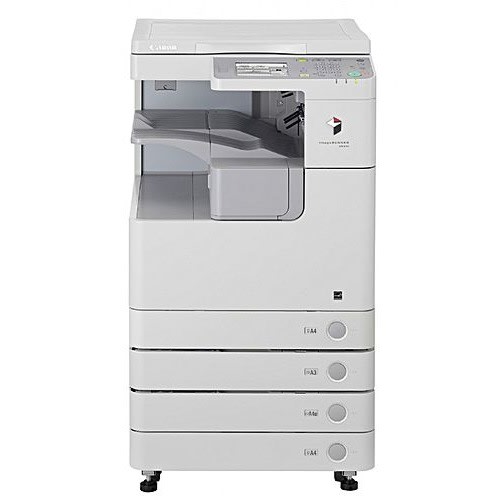

Canon Image Runner 2530i Copier with DADF and AB1 Document Feeder with Pedestal

Overview For Canon Image Runner 2530i Copier with DADF and AB1 Document Feeder with Pedestal:

Specification For Canon Image Runner 2530i Copier with DADF and AB1 Document Feeder with Pedestal:

• Type: Desktop or Free-standing, (Reader-Printer Combined)

• Maximum Original Size: A3

Copy Sizes

• Cassette 1,3 and 4: A3, A4, A4R, A5R

• Custom size: 139.7 to 297mm x 182 to 432mm

• Cassette 2: A3, A4, A4R, A5R, Envelope (with optional Envelope Feeder Attachment-D1)

• Stack Bypass: A3, A4, A4R, A5R, Envelopes

• Custom size: 99 to 297mm x 148 to 432 mm

Resolution

• Reading: 600dpi × 600dpi

• Copying: 600dpi × 600dpi

• Printing: 600dpi × 600dpi, 1200dpi x 1200dpi (UFRll-LT only)

• Number of Tones: 256 Gradations

Copy/Print Speed

• A4 Image RUNNER: 30ppm (BW)

• A3 Image RUNNER: 15ppm (BW)

Magnification

• Zoom: 25-400%

• Fixed: 25%, 50%, 70%, 100%, 141%, 200%, 400%

First Copy Time

• Black-and-White: 3.9sec (45/35 ppm model), 5.4sec (30/25 ppm model), 6.4sec (20 ppm model)

• Warm-Up Time: 30 seconds

• Multiple Copies/Prints: 1 to 999 sheets

• Duplexing: Standard

Paper Weight

• Cassette: 64 to 90g/m2

• Stack Bypass: 64 to 128g/m2

• Duplex: 64 to 80g/m2

CASSETTE

• Paper Capacity: Cassette 2: 550 sheets for image RUNNER 2530i. 50 envelopes (with optional Envelope Feeder Attachment-D1)

• Stack Bypass: 100 sheets (A4, A4R, A5; 80g/m2), 50 sheets(A3;80g/m2)

• Optional: 550 sheets x 2 cassettes (80g/m2)

• Paper Deck: None

• Total capacity: 2,300 sheets

• CPU: Canon Custom Processor, 400MHz

• Memory: 512MB (image RUNNER 2500 i models), 256MB (image RUNNER 2500 non i models)

• Hard Disk Drive: None

• Interface: Ethernet (100Base-TX/10Base-T), USB Host I/F 2.0 x 1 port, USB Device 1.0 x 1 port

• Power Supply: 220-240V AC, 50/60Hz, 4.2A (45/35 ppm model), 220-240V AC, 50/60Hz, 3.3A (30/25/20 ppm model)

• Power Consumption:1.345kW(30/25ppm)

Dimensions

• Image RUNNER 2530i:565 mm x 680 mm x 806 mm (with the platen cover)

                                565 mm x 689 mm x 896 mm (with the DADF)

• Weight: Approx. 77.5 kg

MODEL NAME:

• PDL: UFRII-LT, PCL5e/6 (standard on i models, optional on non i models), PostScript level 3 emulation (optional)

• Resolution: 600 x 600dpi, 1200dpi x 1200dpi (UFRll-LT only)

• Memory: 512MB (imageRUNNER 2500 series i models)

• Hard Disk: None

• CPU: Canon Custom Processor, 400MHz

• PS Fonts: Roman 136

• PCL Fonts: Roman 93

• Supported OS: PCL: Windows 2000/ XP/ Server 2003/ Vista/ Server 2008/ Windows 7

• Postscript level 3 emulation: Windows 2000/ XP/ Server 2003/ Vista/ Server 2008/ Windows 7, Mac OS X (10.4 or later)

• UFRII-LT: Windows 2000/ XP/ Server 2003/ Vista/ Server 2008/ Windows 7, Mac OS X (10.4 or later), Linux

• Mac-PPD: Mac OS X 10.4 or later

• Interface: Ethernet (100Base-TX/10Base-T)

• Network Protocol: TCP/IP(LPD/ Port9100, HTTP), SMB, SNMP v1, WSD, IPv4/ IPv6 support

• Pull Scan: Network TWAIN Driver (75/ 100/ 150/ 200/ 300dpi 8bit color / 75-600dpi 1bit Black & white)

UNIVERSAL SEND KIT

• Optional/Standard: CLR SEND KIT-Y1 (standard on i models, optional on non i models)

MODEL NAME

• Scan speed: A4, 300dpi, BW/Color: 45/34 ipm (45/ 35 ppm model), 25/13ipm( 30/ 25/ 20 ppm model)

Scan Resolution

• BW: 100 x 100 dpi, 150 x 150 dpi, 200 x 100dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

• CL:100 x 100 dpi,150 x 150 dpi, 200 x 200 dpi, 300 x 300dpi

• Destinations: E-Mail/ Internet FAX(SMTP), PC/Server (SMB,FTP), USB memory key

• Address Book: local (Max. 500)

• File Format: TIFF, JPEG, PDF, High compression PDF

• Searchable PDF (optional with SEARCHABLE PDF-C1 )

DADF

• DADF-AB1 standard for image RUNNER 2530i

• CASSETTE FEEDING MODULE

Model Name

• CST. Feeding UNIT-AE1 for all models

Type

• CASSETTE UNIT-W1: Front-loading adjustable drawers

• CST. Feeding UNIT-AE1: 2 Front-loading adjustable drawers

Paper Weight

• CASSETTE UNIT-W1: 64 to 90g/m2

• CST. Feeding UNIT-AE1: 64 to 90 g/m2

Paper Capacity

• CASSETTE UNIT-W1: 550 sheets (80 g/m2) x 1 cassette

• CST. Feeding UNIT-AE1: 550 sheets (80 g/m2) x 2 cassettes

Dimensions (W x D x H)

• CASSETTE UNIT-W1: 565 mm x 680 mm x 97 mm

• CST. Feeding UNIT-AE1: 565 mm x 680 mm x 248 mm

Weight

• CASSETTE UNIT-W1: Approx. 12.8kg

• CST. Feeding UNIT-AE1: Approx. 24.0kg

FINISHER

• Optional/Standard: Optional Inner Finisher-B1 for all models

MODEL NAME

• Number of Trays: One stack tray (Optional 2nd Tray; INNER FIN ADD. TRAY-B1)

Tray Capacity

• A4 - A5R :1000 sheets (or 125 mm in height)

• A3, A4R: 500 sheets (or 62.5 mm in height)

• Staple Position: Corner, Double

Staple Capacity

• A4: 50 sheets x 30 sets

• A4R/ A3: 30 sheets x 15 sets

MODEL NAME

Tray Capacity

• Tray A - A4: 250 sheets, A3: 100 sheets

• Tray B - A4:100 sheets, A3: 50 sheets

• Weight: Approx. 0.6kg

OTHER ACCESSORIES

Other Accessories (Optional)

Stamp Ink Cartridge-C1: Stamp Ink Cartridge

Stamp unit-B1: Stamp Unit

ADF Access Handle-A1: Attaches to the document feeder, making access easier for seated users

PCL Printer Kit-AF1: Supports PCL5e and PCL6 printing for non-i Models

PS Printer Kit-AF1: Supports PostScript Level 3 Emulation printing

Barcode Printing Kit-B1: Provides Barcode printing capability using Jet Caps technology

Super G3 Fax Board-AG1: Add fax functionality

FL Cassette-AJ1: This spare 550-sheet tray for cassette "1" of image RUNNER 3530i

FL Cassette-AK1: This spare 550-sheet tray for cassette "2" image runner 3530i

or for Cassette Feeding Unit-AE1 or Cassette Module-W1 allows you to swap paper sizes without changing the printer settings

2 Way Unit-B1: Enhances the double-sided print productivity up to 100%

Staple-J1: Staples for Inner Finisher-B1

Document Tray-J1: Handy tray that attaches to the side of the device and provides a location for placing originals

Power Supply Unit-U1: Power Supply Unit.

Card Reader Attachment-D3: Attachment kit for Card Reader-F1

Canon Card Reader-F1: Physical card access system that limits system access to authorised users

USB Application 3-Port Interface Kit-A1: 3-Port USB interface kit for USB memory

CCVI I/F Cable-A1: Interface Kit for Coin-Vender

C-EXV33 TONER BK: 2530i
