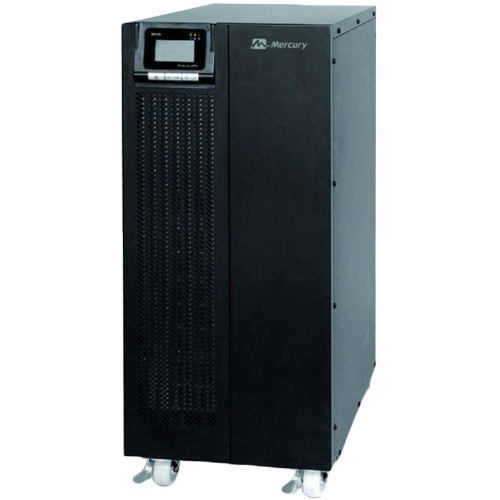

Overview of Mercury 10KVA ONLINE UPS:

You may be wondering, why is there online Uninterrupted Power Supply. The difference between online and off-line Uninterrupted Power Supply(UPS), is that the off line Uninterrupted Power Supply By pass the energy received from consumer. If the AC input voltage is out of defined range or disconnect the inverter device, it is turned on and the output is fed from the inverter. The off line Uninterrupted Power Supply is clearly stated that in special cases the inverter in the ups is always off. While in the case of Mercury 10KVA ONLINE UPS, the DC power available in the inverter convert it into AC power. Among the advantages of Mercury 10KVA ONLINE UPS, this is by rectifier from AC power to DC and then again by the inverter to convert DC to AC power disturbances can therefore not be transferred to the consumer and having a higher technical capabilities, a wider range for the AC input voltage, the output regulation is more appropriate (for voltage and frequency), which eventually overload is greater than the higher Reliability of Off Line UPS provides. The Mercury 10KVA ONLINE UPS are recommended for sensitive equipment such as large computer networks, Main Frame, sensitive medical equipment, telecommunications, servers are very sensitive. The Mercury 10KVA ONLINE UPS is able to solve all electrical power delivered to the consumer, which makes them much clearer and reliable. When the deployment demands zero tolerance for break in power supply, the Mercury 10KVA ONLINE UPS is what you need for a perfect balance between top performance and budget-friendly pricing. The Mercury 10KVA ONLINE UPS has a rating of 7000W, providing ample capacity to meet a significant load. you can trust the Mercury 10KVA ONLINE UPS to deliver the performance for your smooth business operations. The Mercury 10KVA ONLINE UPS capacity is relatively large enough to meet the requirements of many users. The Mercury 10KVA ONLINE UPS inverter is powered by 20 x 12V/8.2Ah internal sealed and maintain-free batteries to provide the power backup you need. The Mercury 10KVA ONLINE UPS support’s multiple office device that delivers up to 16 minutes power backup at half load and some 5 minutes backup at full load. The following key features of the Mercury 10KVA ONLINE UPS offers ensures efficient power backup delivery and maximum power protection for sensitive devices such as, networking equipment, servers, work stations, other IT equipment and mission-critical applications, High frequency and double conversion on-line technology, Fully digitized microprocessor control, Wide input voltage range, UPS startup without battery, Cold start, Advanced battery management, Advanced battery charge in UPS off mode, Lightning and surge protection, Short circuit and surge protection, Fan speed auto control when loads varies, Optional extension battery pack, Load capacity display, Smart RS232 communication with monitoring software, Optional SNMP Card slot

Act now! Get Mercury 10KVA ONLINE UPS in Nigeria, at Kara Online Store and also offer the best bulk purchase discount price in Nigeria.

Specification:

Input voltage: 176 ±5VAC~276 ±5VAC

Input frequency: 46 ~ 54(50Hz)±0.5Hz; 56 ~ 64(60Hz)±0.5Hz auto sensing

Input phase: Single phase

Input socket: With Fuse

Cold Start (0 to 100% load): Press the ON/OFF switch

Input range: (220V) 140V-300V

Rating output (VA): 6KVA / 4200W

Rating output (W): 390W

Rating output (W): Battery mode(simulated sine wave),

AC mode: (sine wave)

Power factor: ≥ 0.98

Rating voltage: 96VDC

Output range: 220Vac-7%+15% ( in battary mode )

Rear Output Socket: 2xUniversal - Battery backup

Transfer time: 0ms (AC mode - Battery mode), 0ms (AC mode - Bypass mode)

Communication: RS232 ; SNMP (optional)

Rating frequency: 50Hz

Output Frequency: Line-mode Synchronize with the Utility

Battery mode: 5 cycles turn off inverter, provide alarm.

Short Circuit Protection: 5 cycles turn off inverter, no transfer tp bypass, provide alarm (AC mode); 5 cycles turn off inverter, provide alarm (AC mode); Unput fuse blown or breaker action (bypass mode)

Application: networking equipment, servers, work stations, other IT equipment and mission-critical applications

High frequency and double conversion on-line technology

Fully digitized microprocessor control

Wide input voltage range

UPS startup without battery

Cold start

Advanced battery management

Advanced battery charge in UPS off mode

Lightning and surge protection

Short circuit and surge protection

Fan speed auto control when loads varies

Optional extension battery pack

Load capacity display

Smart RS232 communication with monitoring software

Optional SNMP Card slot
