Overview of M-Audio pulsar II - Small Diaphragm Condenser Microphone:

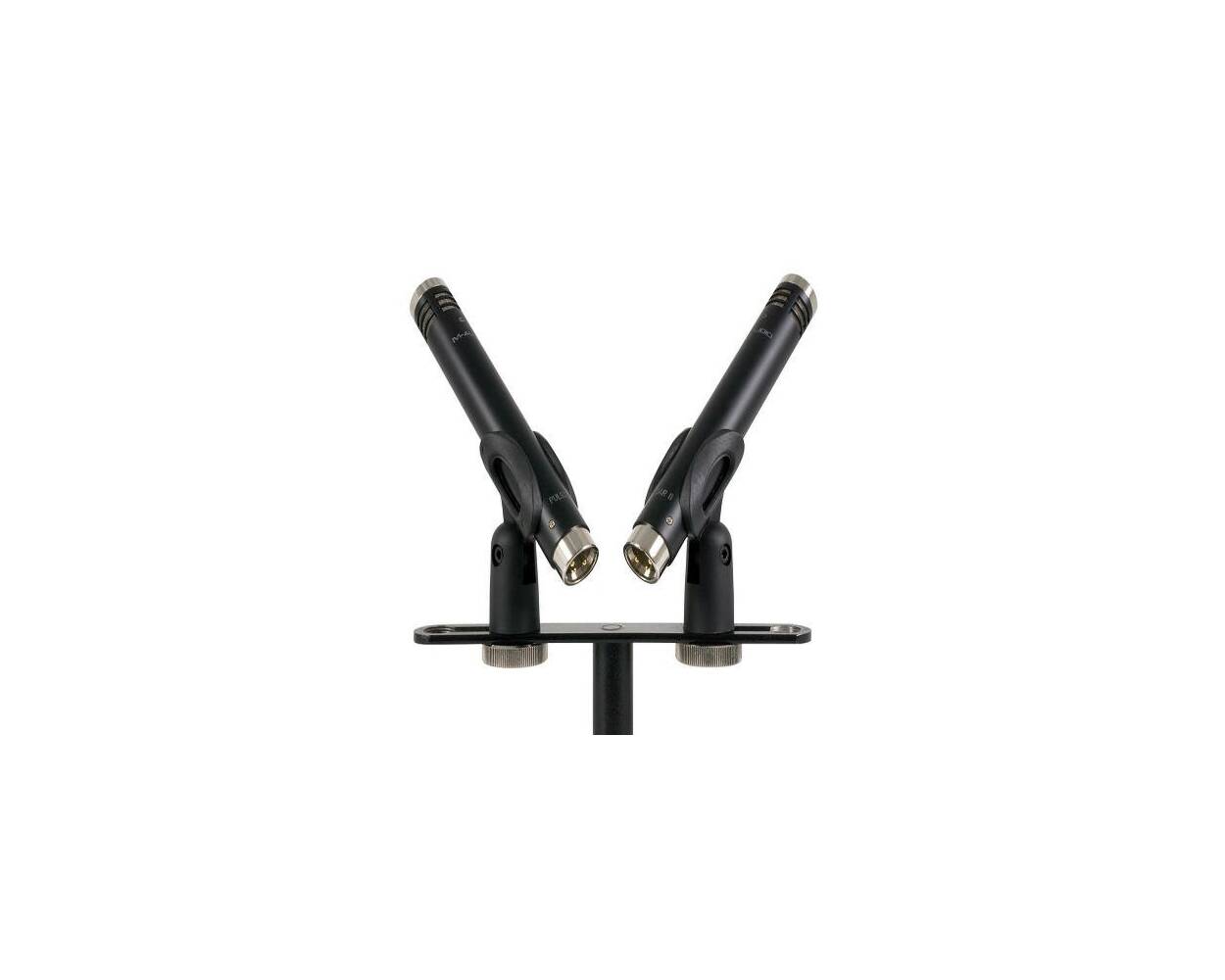

Carefully selected for their nearly identical response, matched pairs of Pulsar II microphones from M-Audio deliver superior stereo performance. The brass bodies are equipped with internal shockmounts and low-noise transformerless electronics. Each microphone offers a switchable 10 dB attenuation pad, plus an 80 Hz low-cut filter. Together, these functions allow the Pulsar II microphones to adapt to a variety of applications. The included hardware package allows Pulsar II microphones to be mounted in either an X-Y or ORTF (110º) stereo configuration. While ideal for stereo use, these microphones can also be used independently in a wide range of critical recording situations. This complete package includes a stereo mounting bar, hard mounts, risers, windscreens, and cloth bags, as well as a handsome and functional wooden storage/travel case.

Specification:

• Type: Small diaphragm condenser, gold evaporated
• Polar pattern: Cardioid
• Frequency Response: 20 Hz-20 kHz
• Sensitivity: 13.8 mV/Pa (-37dBV)
• Max. SPL (<0.5% Threshold Level): 134dB; 144 dB using -10 dB Pad
• Equivalent Noise Level: 15dB—A weighted
• Output Impedance: 300-600 Ω
• Suggested Mic Pre Input Impedance: 1 - 2.5k Ω
• Preamp Topology: Class A FET, transformerless
• Power Requirement: 30 VDC - 50 VDC phantom power
• Connector: 3-pin male XLR
• Dimensions: 22mm (0.87") diameter x 132mm (5.20") length
• Weight: 115 g (4.0 oz.)

Features:

• Two response-matched M-Audio Pulsar II microphones
• 0.75" diameter, 6-micron sputtered gold diaphragms
• Cardioid pickup patterns
• Class A FET transformerless electronics
• Brass bodies with internal shockmounts
• Switchable 10 dB pads and 80 Hz filters (18 dB/octave)
• 48 Volt phantom power required
• Includes stereo bar, hard mounts, risers, wind screens, and soft bags—all in a wooden travel case
