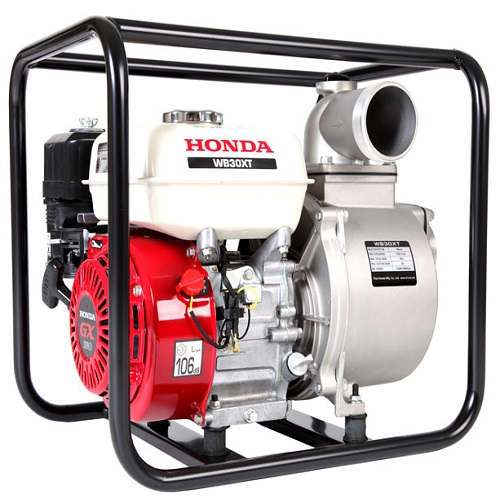

Overview of Honda Water Pump Generator WB30XH:

Powerful Honda water pump comes with better design and top performance. Honda GX-T engine ensures easy starting, easy usage, outstanding fuel economy, low emission and long-lasting durability as well as compact designs.

Specification:

• Type Self priming, suction pump
• Suction aperture 80 mm (3 Inch)
• Discharge aperture 80 mm (3 Inch)
• Total head lift (Max.) 28 m
• Suction head lift (Max.) 8 m
• Maximum discharge capacity 1100 l/min
• Self feed time 150 sec./ 5 m
• Engine type 4-stroke, overhead valve single cylinder, inclined by 250
• Displacement 163 cm3
• Bore and Stroke 68.0 x 45.0 mm
• Compression ratio
• Net Power (SAE J1349)* 3.6kW (5 HP)/3600 min-1 rpm
• Max. Net Torque (SAE J1349)* 10.3 N.m (1.05 kgf.m, 7.6 lbf.ft)/2500 min-1 rpm
• Fuel consumption 1.5 l /h
• Fuel tank capacity 3.1 l
• Fuel used Unleaded Gasoline (Oktan 86 or higher)
• Oil capacity 0.58 l
• Air cleaner Semi dry type
